Pharmaceutical: Grade B Cleanroom Gowning Behavior Recognition — Field Practice

Six ordered steps, five classes of PPE, one motion event — the system checks in real time whether each step was done and whether the order was right, with all inference staying on the plant floor.

By Leo 中文版

KEY POINTS

The core tension. The acceptance criterion for gowning is not "is there a mask in the frame" but "were six things done in the right order" — a single-frame detector cannot answer a process question that requires memory.
Split into two jobs. The foundation model only has to see; the state machine judges the order. When the SOP changes, you change the state machine configuration, not the model.
Chained into one tensor flow. Seven operators dragged onto a canvas and wired up: camera → preprocessing → two segmentation branches → event detection → state machine → frame capture. No code anywhere.
Few-shot start. The entire project used 12 field frames across 5 classes — two or three per class. A new class takes 1–10 frames and a few minutes to configure.
Nothing on site changes. Existing CCTV is reused, inference runs on a local edge GPU and video never leaves the plant. The AI sits as a side-channel observer: it is not in the control loop and does not touch the existing alarm strategy.

Clip 01The colored masks and class labels in the frame are live system output: mask, hood, coverall, goggles and gloves are each recognized separately, and a motion such as tying shoelaces becomes an event of its own. This is a 38-second highlight cut into five segments following the gowning order; the full 11-minute continuous recording is unedited. The interface language in all screenshots below is Chinese, as deployed on site.

The gowning room of a Grade B cleanroom at a pharmaceutical plant already had CCTV. The requirement: without changing the production process and without touching the existing audible-visual alarms, recognize, log and flag the gowning order and PPE outcomes in real time, producing traceable audit data.

01/6REQUIREMENTS

Translating "gown according to the SOP" into rules a machine can check

What the customer asked for was one sentence: before entering the Grade B area, put on your PPE according to the SOP. That sets the goal, but the system also needs to know which classes of item to recognize, in what order to check them, what counts as a missed step, and how results are retained. The real work of the project was this translation.

Gowning is not "detect one thing", it is "do six things in order". Traditional AOI and object detection are good at answering "is there a mask in the frame", but the acceptance criterion is "mask → hood → coverall → shoe-tying → goggles → gloves, none skipped and none out of order". The first is a single-frame judgment; the second is a process judgment that carries memory.

So the system was split along that tension: the foundation model sees, the state machine judges the order. That one cut determines every maintenance cost that follows — changing the acceptance criterion means editing one state machine configuration, not retraining a model.

Site constraint	How the system satisfies it
Existing CCTV / NVR	Pull RTSP directly and reuse what is there; add a close-up only where finer detail is needed
No change to process or alarms	The AI is a side-channel observer and stays out of the control loop
Raw video must not leave the plant	Inference on a local edge GPU in the workshop; only events and evidence go out
Events must be traceable and reviewable	Key frame + short clip + confidence + the event and rule that fired
The SOP will change, no factory returns	Order changes are configuration changes; a new target class starts from 1–10 field frames

SCOPEWriting down what it can and cannot do, on day one

This looks like self-imposed limitation; in practice it is what keeps acceptance from turning into an argument. Vision has hard physical limits, and if you gloss over them, every later review reopens the same fight.

CAN DO

Gowning step order and missed steps
Whether mask / hood / coverall / goggles / gloves are worn
Key motions such as tying shoelaces
Entering the clean area before gowning is complete
Touching the face, leaning on walls, sitting on benches

PARTLY

Hand sanitizing: the pump motion is visible, whether liquid came out is not
Mask coverage and stray hair: needs a face close-up camera

EXPLICITLY NOT

Expiry dates on cleanroom garments
Whether zippers and cuffs are fastened tight
Masks worn inside out, or reused after falling on the floor
Subjective requirements such as "no large turning movements"

02/6TENSOR FLOW

Seven operators wired into one flow on a canvas

The backbone of the whole configuration is a single tensor flow canvas. The engineer drags operators out of the library on the left, wires them in the direction the data travels, and fills in parameters inside each node — not a line of code. Look at the complete flow first; the next three sections are all about what happens after you double-click one of these nodes.

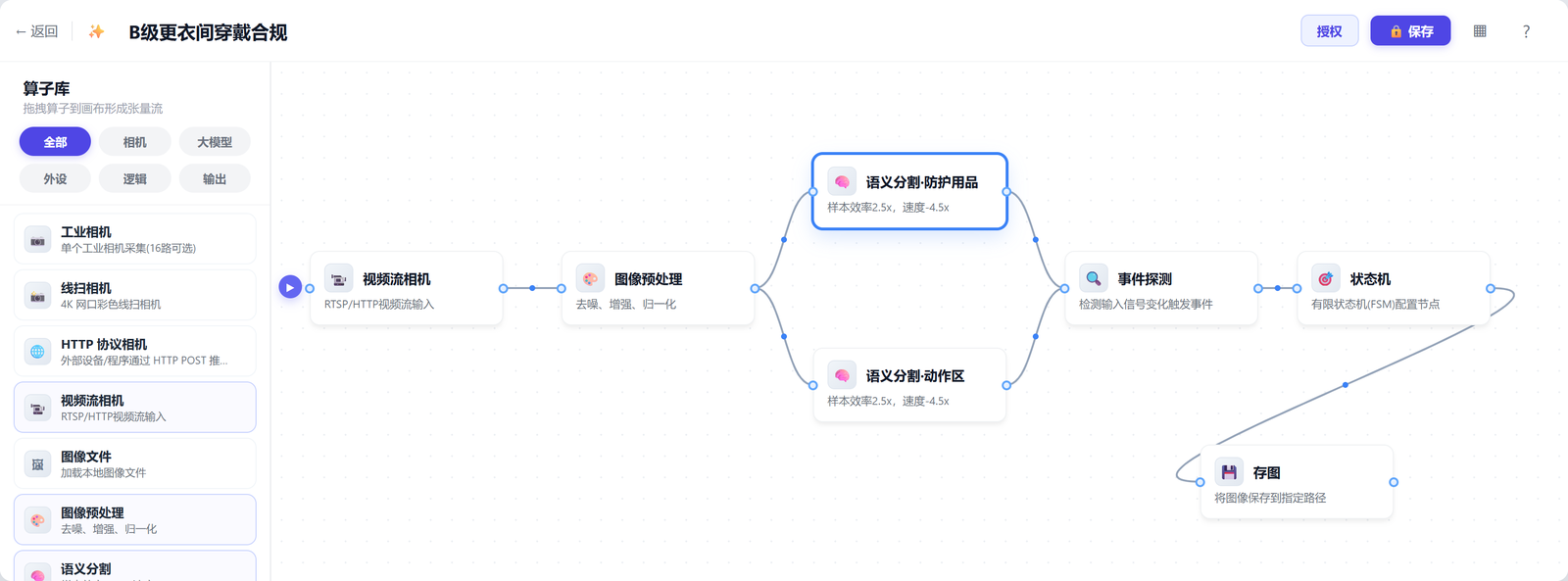

Tensor flow editor: operator library on the left grouped into all, camera, foundation model, peripheral, logic and output; on the canvas seven nodes — video stream camera, image preprocessing, semantic segmentation for PPE, semantic segmentation for the motion zone, event detection, state machine and frame capture — wired into a main line plus a motion branch — UI 01The tensor flow as configured for this project. The main line runs **video stream camera → image preprocessing → semantic segmentation → event detection → state machine**, and the state machine's "state change" output feeds a frame-capture node that keeps key frames. **Two segmentation nodes branch off after preprocessing**: the upper one recognizes the five PPE classes, the lower one segments only the shoe-tying motion zone — motion events are judged on speed and duration, which is a different rule from "object present", and tuning both inside one node makes them interfere. The node outlined in blue is the PPE segmentation node; double-clicking it opens UI 02.

Operator	What you configure	Why it is its own layer
Video stream camera	RTSP address, frame rate, camera position	Reuses existing CCTV; video circulates locally only
Image preprocessing	Denoise, enhance, normalize	Lighting varies widely in the gowning room; flatten it before the model
Semantic segmentation · PPE	Minimum area, detection confidence and debounce frames for 5 classes	"Seeing" is trained only here, starting from 1–10 field frames per class
Semantic segmentation · motion zone	Segments the shoe-tying zone only	Motion is judged on speed, tuned separately from object presence
Event detection	The decision logic for E0–E5	Translates pixels into business language; pure configuration
State machine	States, transitions, actions	Order and acceptance criteria live here — the cheapest place to change
Frame capture	Trigger timing, save path	Leaves reviewable key frames; stays out of the control loop

Almost everything the site needs to change lands in the parameters of one node: move the camera, edit the first node; adjust sensitivity, edit segmentation; change the decision criteria, edit event detection; change the step order, edit the state machine. None of them drag the others along.

03/6SEGMENTATION

Teaching the system to see PPE

Why pixel-level segmentation rather than bounding boxes: in the gowning room people stand sideways, bend over and are half-dressed; the coverall and the wall are both pale, and a gloved hand has a similar outline to a bare one. Box regression in that setting readily mistakes "holding it" for "wearing it". Segmentation returns a mask, so area and position can then separate the two cases.

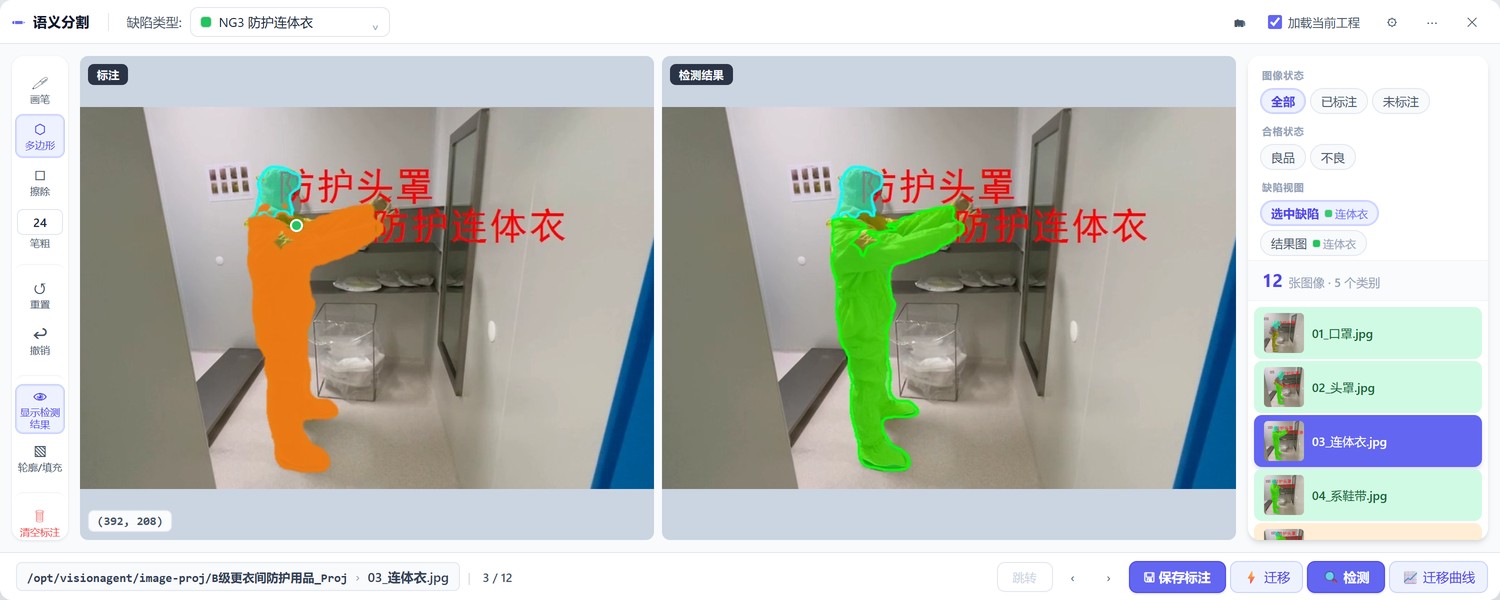

Semantic segmentation annotation UI: the defect type at the top is set to NG3 protective coverall, annotation tools such as brush, polygon and eraser run down the left, the middle-left pane shows the hand-drawn orange mask and the middle-right pane the model's colored masks and class labels, the image list on the right holds 12 images across 5 classes, and save, transfer and detect buttons sit along the bottom — UI 02This one screen is the entire interface for configuring "seeing". Pick a **class** (here NG3, protective coverall), outline the target with the polygon tool, then hit **Detect**. The left pane is the hand-drawn orange mask; the right pane is what the model produced — **the green coverall mask, the cyan hood mask and the red class labels were all drawn by the system, from a real frame at t=371.0s in this project's recording**. Note the counter in the top right: **12 images and 5 classes for the whole project**, two or three per class to get started. The working order is: create the 5 classes → paint masks on field frames and save → click Transfer for incremental training → click Detect to review the batch with the current model.

Class	Mask	Judges	Difficulty
NG1 Protective mask	Magenta	Presence	Small visible area in profile; area threshold loosened
NG2 Protective hood	Cyan	Presence	Same color family as the coverall; separated by head-region position
NG3 Protective coverall	Green	Completeness of wear	"Holding" vs "wearing" separated by mask overlap with the body
NG4 Protective goggles	Purple	Presence	Strongly reflective; samples must cover varied lighting
NG5 Protective gloves	Blue-violet	Presence (one per hand)	Inner and outer gloves look alike; separated by color plus count

Thanks to the transformer's few-shot capability, adding a class takes 1–10 field frames and a few minutes to configure and see results; adding samples and clicking Transfer runs an incremental pass rather than a retrain from scratch. Moving to another gowning room, classes and samples carry over — which is why one system can cover many stations and many lines.

04/6EVENT LOGIC

Turning pixels into "this step is done"

Segmentation only sees pixels; the business needs decidable events like "the hood is on" or "the coverall is on". That logic is assembled in the event orchestrator: drag decision primitives out of the library, pick the target class in the node properties, then combine them with AND / OR / NOT into a condition. Changing a decision means changing parameters and wires.

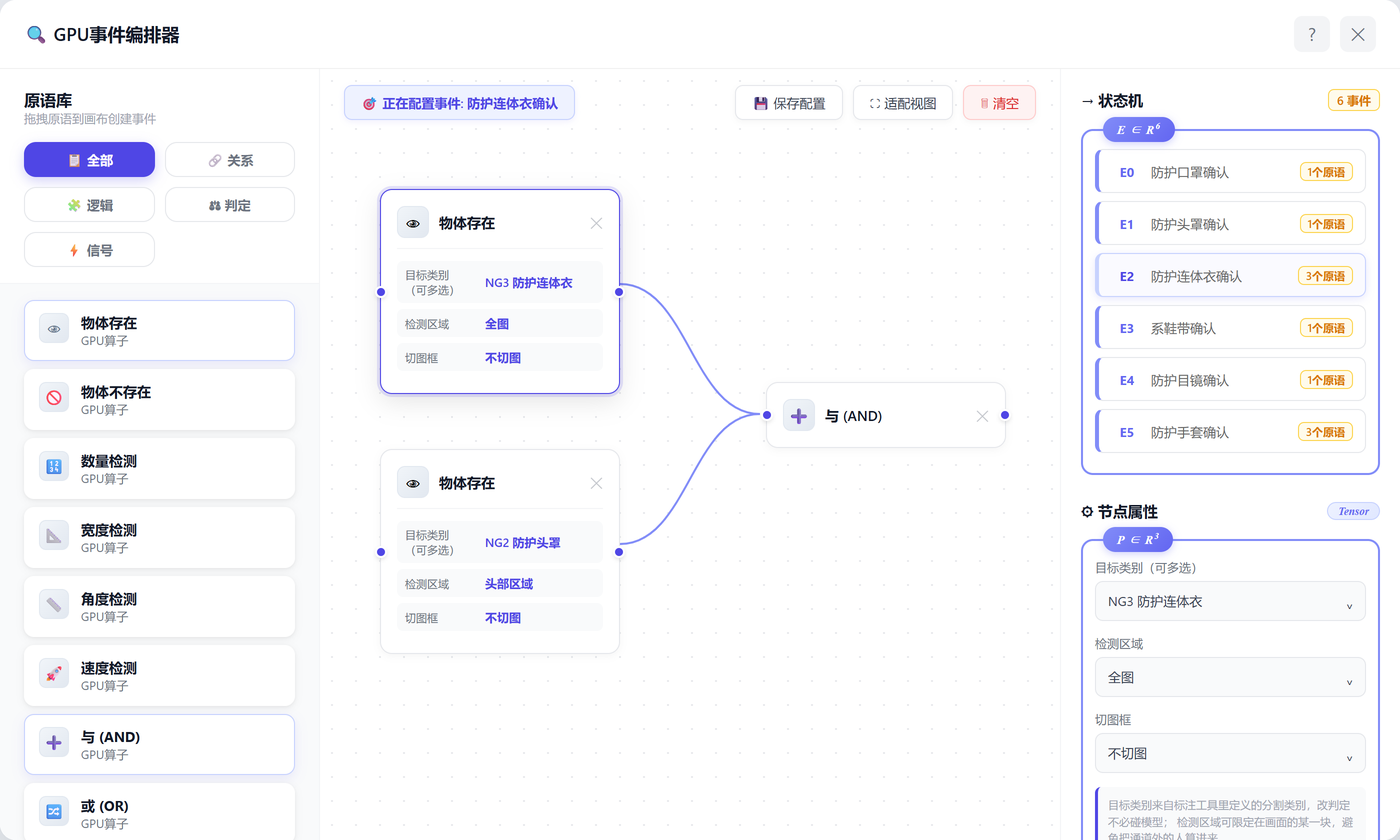

GPU event orchestrator: primitive library on the left grouped into all, relation, logic, decision and signal; on the canvas two object-present primitives combine through an AND gate into the coverall-confirmed event; on the right the six events of the gowning SOP and the properties of the selected node — UI 03Reached by double-clicking the event detection node in the tensor flow. Here E2, coverall confirmed, is being configured: **the coverall is present** AND **the hood is still present** — two "object present" primitives joined by an AND gate, which is why the E2 row on the right is labelled "3 primitives". **Why the second condition**: judging the coverall alone would pass someone who takes the hood off before putting the suit on, and that deviation genuinely happens on site; locking the precondition into the event is more robust than patching a rule afterwards. Each primitive has only three parameters: **target class** refers directly to NG1–NG5 from the annotation UI, **detection region** can confine the hood to the head area, and **crop box** decides whether only that patch is passed downstream.

Primitive	How it is configured	Where this project uses it
Object present	Target class (multi-select) + detection region + crop box	E0–E2, E4: mask / hood / coverall / goggles
Object absent	Exactly one class; fires when it is missing	Backward moves such as taking the hood off
Count check	Comparison mode + threshold	E5: gloves need one per hand, count = 2
Speed check	Motion speed threshold (px/s) + duration in frames	E3: motion events such as tying shoelaces
AND / OR / NOT	Wire several primitives together	E2: coverall present and hood present

One event judges one thing. Stabilize segmentation before touching thresholds. For false positives, raise debounce frames first; for missed detections, lower the minimum mask area and the detection confidence first.

05/6STATE MACHINE

Order is enforced by what is not on the diagram

Order is not enforced by writing extra NG rules but by the fact that any unexpected event is a self-loop: the flow advances only where the cell for "current state × its event" has a target state filled in. Skip a step and nothing moves; miss a step and you never reach the end. Where an alarm or a log entry is needed, an action is attached to the transition.

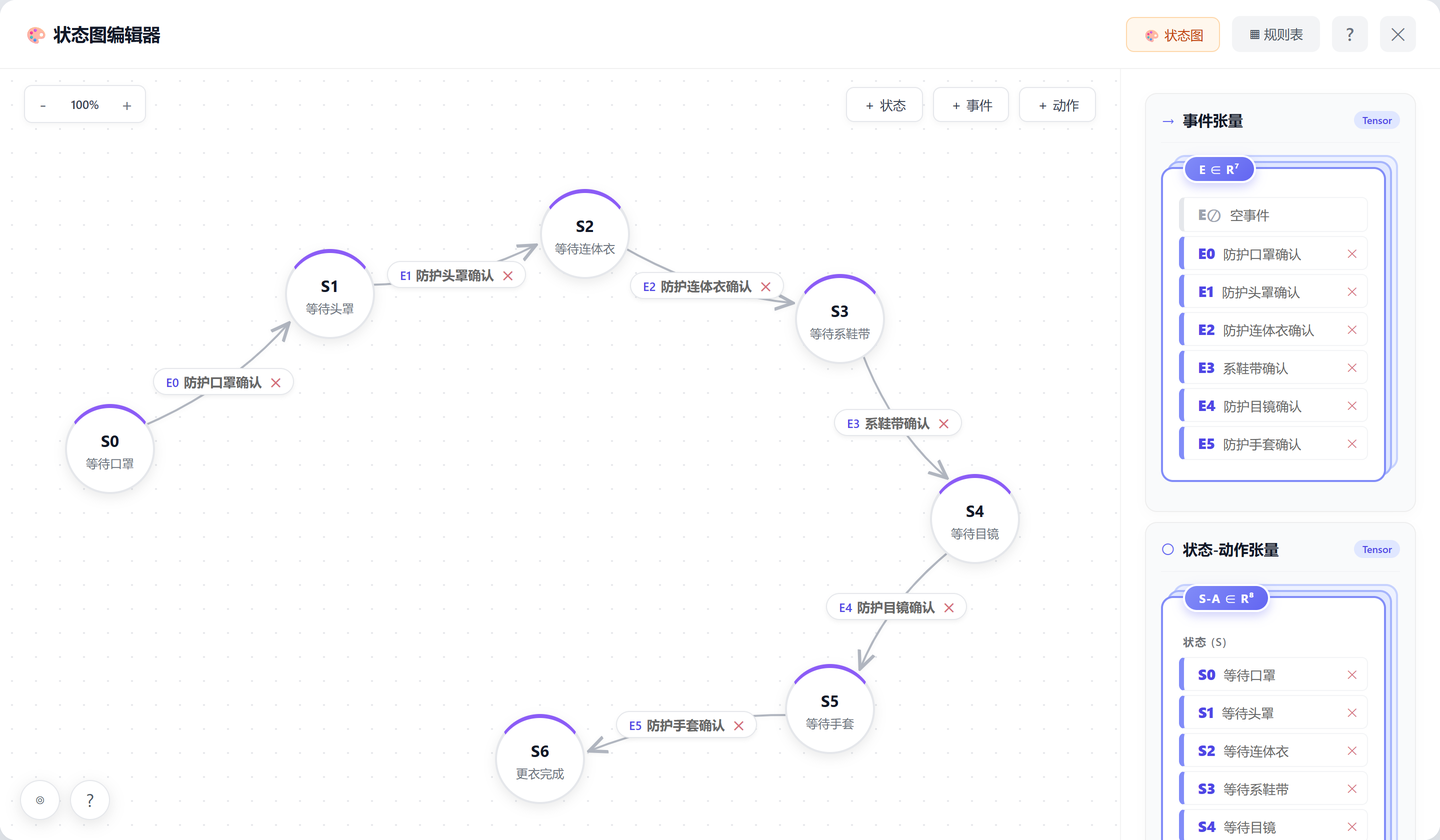

State diagram editor: seven circular state nodes on the canvas form the gowning sequence, connected by six transitions carrying event labels, with the event tensor and state-action tensor panels on the right — UI 04Reached by double-clicking the state machine node in the tensor flow. **Seven states form a single chain with no branches**: from S0 waiting for the mask through to S6 gowning complete, with the six transitions carrying `E0`–`E5`. Circles can be dragged anywhere on the canvas and the event labels follow their connections. Only one edge, E0, leaves S0 — so even if the coverall goes on first and E2 is already true, no edge can be taken and the flow stays put. That is how order is enforced. To create a transition, hold Shift and drag from A to B on the canvas, then pick the event; the **Rule Table** tab shows the same configuration as a matrix, where only the six diagonal cells carry a target state and everything else self-loops. The state-action tensor panel on the right lists the seven states plus the single action `A0 log OK · save key frame`, bound to S6.

State	Awaited event	How the event is judged	On success
S0 Awaiting mask	E0 Mask confirmed	Object present (protective mask)	→ S1
S1 Awaiting hood	E1 Hood confirmed	Object present (protective hood)	→ S2
S2 Awaiting coverall	E2 Coverall confirmed	Coverall present and hood present	→ S3
S3 Awaiting shoe-tying	E3 Shoe-tying confirmed	Motion-zone speed + duration in frames	→ S4
S4 Awaiting goggles	E4 Goggles confirmed	Object present (protective goggles)	→ S5
S5 Awaiting gloves	E5 Gloves confirmed	Gloves present and count = 2	→ S6
S6 Gowning complete	—	Log OK, write elapsed time and key frame	End

Insert a step (hand sanitizing, say): add one state and one event, build its logic in the event orchestrator, then change two cells in the rule table. Reorder: move the green cells in the rule table. Move to another gowning room: copy the whole state machine, keep the segmentation classes, add a few field frames and run a transfer pass. None of this touches the model, and none of it needs an algorithm engineer on site.

06/6ROLLOUT

What IT has to prepare is a one-time checklist

None of this involves rebuilding the production network. For the customer's IT team the deployment is a one-time cooperation; maintenance afterwards lives in the configuration UI on the business side.

Item	Detail	Owner
RTSP addresses and a read-only account	Stream address per camera position; read-only is enough	Customer IT
Edge server	GPU-equipped, in a cabinet the video can reach	Customer procurement, or supplied by us
Network policy	Pull video, push events; no internet access needed	Customer IT
Storage and backup	Evidence retention period, configuration backup policy	Agreed by both sides
Account permissions	Operator / reviewer / administrator	Customer assigns, platform configures

One edge agent can carry several camera feeds and several tensor flows at once: gowning room, airlock and aseptic bench share one device and one configuration UI. Adding a station mostly means adding a camera, copying the tensor flow and contributing a few field frames — not standing up another system.

07TAKEAWAYS

Define the requirement clearly and everything after it holds

Looking back, what took the time on this project was not the model. It was breaking a one-sentence requirement into three layers of definition that could actually be built:

Business requirement: PPE must be correctly worn before entering the Grade B area, and missed or out-of-order steps must be detectable.
Decision rules: check the six steps — mask, hood, coverall, shoe-tying, goggles, gloves — logging state along the way and producing a verdict.
Software configuration: seven operators forming one tensor flow, plus an S0–S6 state machine that fixes how it advances.

Only once those three line up do image collection, model training, tensor flow configuration and the acceptance criteria share a common baseline. The clearer the definition, the less rework later.

The other lesson is where you put the cost of change. In this system the SOP is the thing most likely to change and the model is the hardest thing to change, so the design deliberately puts the SOP in a single state machine table and leaves the model responsible only for seeing. A system survives only if the people on site can change it.

Four questions ran through the whole implementation: what does the system look at, when does a step count as done, what fails outright, and how are results retained. Answer those four and the rest is configuration work.
